JOEPAI Valve launches its high-performance 2-Piece Union Ball Valve Series, engineered to meet rigorous JIS 10K/20K & KS standards for Korea’s industrial markets. Featuring investment-cast bodies and zero-leakage guarantees, these valves deliver uncompromising reliability for petrochemical, shipbuilding, and food processing applications.
1. Robust construction: Precision cast body (CF8/CF8M) with high dimensional accuracy and structural integrity. Suitable for water, oil and gas (W.O.G.), working pressure: 800 PSI (10K) / 1,000 PSI (20K). The valve is hydrostatically tested at 1,500 PSI, in accordance with JIS B 2003.
2. Outstanding sealing and safety: This aspect is also tested and guaranteed, with 100% leak test, 100 PSI air underwater verification, and ISO 5208 Class A standard. Pure PTFE® seals and valve seats can achieve zero fugitive emissions, in accordance with FDA/EC1935 standards. For the valve stem, an enhanced design is made to prevent blowout, made of SS304/SS316, which can withstand high pressure.
3. Strong adaptability: Adjustable stem packing, PTFE packing box can be tightened on site without disassembly. The temperature range is from -60°F to 450°F (i.e. -51°C to 232°C), suitable for low temperature to steam applications. Solid ball valve options are available, which can be customized according to abrasive/slurry media (SS316/SS304).
4. Operational advantages: Lever operation, 90° quick closing, with position indicator. Optional locking device to confirm the safety of the valve status, suitable for safety-critical processes. And the valve is jointly designed, without disassembling the pipeline for maintenance.
✅ Cost Efficiency
30% lower pricing than Japanese/Korean brands with identical material quality (SCS13=SS304, SCS14=SS316).
✅ Rapid Logistics
Delivery time:15~30days after your deposit received.
| Feature | Specification | Korean Market Advantage |
| Body Material | SCS13 (JIS G4303) / SCS14 (AISI 316) | Chemical plant compliance |
| Pressure Rating | KS 10K (PN20) • KS 20K (PN50) | Fits Hyundai/KCC infrastructure |
| End Connection | JIS B0203 Threads（BSPT） | Direct replacement for local systems |
| Seat Material | Reinforced PTFE (JIS T6812) | -40°C~200°C range for four seasons |
| Operation | Lockable lever (KS C IEC 60947) | Safety compliance |

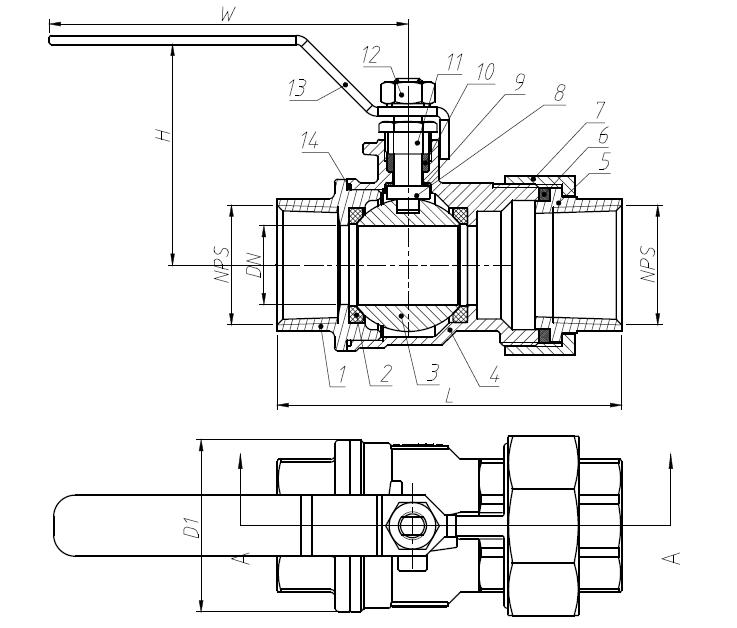

| NPS | DN(mm) | L (mm) | H (mm) | W (mm) | D1 (mm) |
| 1" | 22 | 96 | 60 | 100 | 48 |
| 11/4" | 24 | 104 | 62 | 100 | 51 |
| 11/2" | 32 | 115 | 80 | 160 | 62 |
| 2" | 40 | 130 | 85 | 160 | 75 |
Our 2PC Union Valve solves Korea’s high-pressure sealing challenges – from LNG terminals to chemical dosing systems. The 1,500 PSI hydrostatic test exceeds KS B 1510 requirements, ensuring lifelong integrity.
